The AES Key Schedule explained

2020 August 1

I recently started the cryptopals challenge and had to re-study how AES works to implement it in Go. I decided to publish my notes on the AES algorithm to help my future self and anyone here get started or get re-acquainted with the cryptographic standard.

This article is not a copy-paste of the AES specification. I wanted to write an introduction that helps the reader understand the basics of the AES key schedule. At the end of this article you should know enough to read the actual AES specification with ease and implement the key schedule yourself.

If you're interested in seeing an implementation close to the specification, checkout the one I coded for the cryptopals challenge. For a real world implementation I recommend Go's aes crypto package.

AES in summary

Let's start with a quick recap. The Advanced Encryption Standard is a symmetric cipher, which means that you need a secret key to encrypt a plaintext and the same key to decrypt the ciphertext. The key can be 128, 192 or 256 bits. In the rest of this article I assume that we are working with AES-128 that uses a key of 128 bits.

But AES is also a block cipher, which means that it encrypts blocks of 128 bits in multiple rounds before outputting the final ciphertext.

Since there are multiple rounds of encryption for one block, do we use the same key every time ?

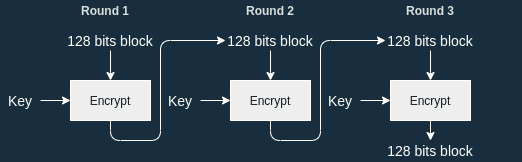

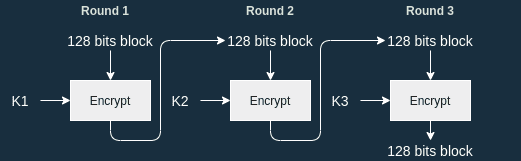

Block cipher encryption

No we don't do that because it would expose us to slide attacks: a cryptanalysis technique relying on the fact that we use the same key every round.

Key Expansion

To avoid using the same key every round, we derive new keys (called Round Keys) from the original one. This is called a key schedule:

A key schedule is an algorithm that calculates all the round keys from the key.

In this article I will use the same notation found in the original specification. Let's start by defining some constants. We write:

  • KK the cipher key. It is 128 bits long.
  • NkN_k the number of 32-bit words comprising the cipher key. Here Nk=4N_k = 4.
  • NrN_r the number of rounds. Here Nr=10N_r = 10.
  • NbN_b the number of columns comprising the State (basically the number of 32-bit words comprising a block). Nb=4N_b = 4.

Since there are 10 rounds, we have to produce 10 round keys. Each round key is then used in the corresponding round:

Block cipher encryption

AES Key schedule

The AES key schedule generates a total of 11 subkeys [K0,K1,...,K10][K_0, K_1, ..., K_{10}] of 128 bits each (even in AES-192 and AES-256).

11 subkeys? But there are only 10 rounds !

That's because first key K0K_0 is XOR'd with the plaintext before the first round. Check out my post explaining AES for more info.

The operations are done on 32-bit words so we adapt our notation to work with this: the result of the key schedule is an array of 32-bit words denoted [wi][w_i], where 0i<110 \le i \lt 11.

Consider the cipher key KK composed of 128 bits. We split the key in 32-bit words denoted wiw_i:

K=[w0,w1,w2,w3]K = [ w_0, w_1, w_2, w_3 ]

See how I used the notation wiw_i? This is because the cipher key KK is actually the first round key : K0=KK_0 = K.

K0=KK_0 = K is only applicable for AES-128.

Then each new subkey depends on the previous subkey. To compute K1=[w4,w5,w6,w7]K_1 = [w_4, w_5, w_6, w_7] the algorithm is the following:

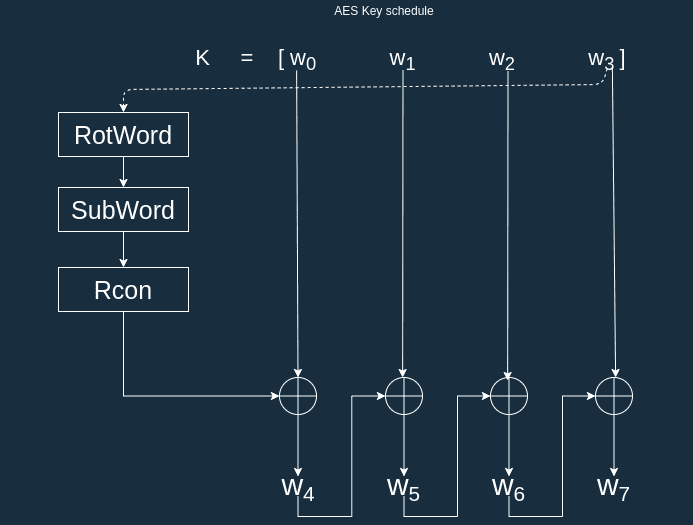

AES key schedule

The general rule is that:

wi=wiNkwi1w_i = w_{i-N_k} \oplus w_{i-1}

For instance w6=w64w5=w2w5w_6 = w_{6 - 4} \oplus w_5 = w_2 \oplus w_5.

The exception occurs when we have to compute a new wiw_i and i0(modNk)i \equiv 0 \pmod{N_k}. Here we want to compute w4w_4 and 40(mod4)4 \equiv 0 \pmod 4. In this case, the previous word w3w_3 undergoes some transformation with the functions RotWord, SubWord and Rcon (more on this later).

To compute K2=[w8,w9,w10,w11]K_2 = [w_8, w_9, w_{10}, w_{11}], we apply the same algorithm to K1=[w4,w5,w6,w7]K_1 = [w_4, w_5, w_6, w_7]. In total this is repeated 10 times.

Independently of the size of the cipher key you are using (AES-128, AES-192 or AES-256), the length of the Round Key is always the size of the state. In other words, the size of the Round Key is the size of a block.


RotWord is quite simple. It takes a 4-byte word [a0,a1,a2,a3][a_0, a_1, a_2, a_3] and returns [a1,a2,a3,a0][a_1, a_2, a_3, a_0].

Here each aia_i is a byte composed of 8 bits.

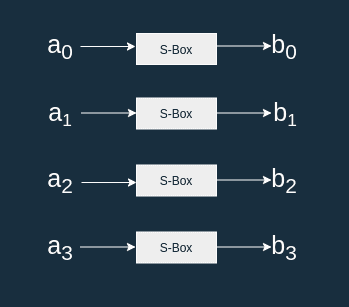

SubWord is a little bit more complex. It takes a 4-byte word [a0,a1,a2,a3][a_0, a_1, a_2, a_3] and applies the AES S-Box to each of the bytes to produce a new 4-byte word [b0,b1,b2,b3][b_0, b_1, b_2, b_3].



The S-box is a substitution table also used in the encryption algorithm. Think of it as a big lookup table that maps an 8-bit input to an 8-bit output. For instance b3 is mapped to 6d.

For an input cc there is a way to compute the output s=S(c)s = S(c). You start by computing the multiplicative inverse of cc in GF(28)GF(2^8), we name it b=[b0,b1,b2,b3,b4,b5,b6,b7]b = [b_0, b_1, b_2, b_3, b_4, b_5, b_6, b_7].

Then you can compute ss using the affine transformation - source wikipedia:

[s0s1s2s3s4s5s6s7]=[1000111111000111111000111111000111111000011111000011111000011111][b0b1b2b3b4b5b6b7]+[11000110] \begin{bmatrix}s_0\\s_1\\s_2\\s_3\\s_4\\s_5\\s_6\\s_7\end{bmatrix} = \begin{bmatrix} 1 & 0 & 0 & 0 & 1 & 1 & 1 & 1 \\ 1 & 1 & 0 & 0 & 0 & 1 & 1 & 1 \\ 1 & 1 & 1 & 0 & 0 & 0 & 1 & 1 \\ 1 & 1 & 1 & 1 & 0 & 0 & 0 & 1 \\ 1 & 1 & 1 & 1 & 1 & 0 & 0 & 0 \\ 0 & 1 & 1 & 1 & 1 & 1 & 0 & 0 \\ 0 & 0 & 1 & 1 & 1 & 1 & 1 & 0 \\ 0 & 0 & 0 & 1 & 1 & 1 & 1 & 1 \end{bmatrix}\begin{bmatrix} b_0\\ b_1\\ b_2\\ b_3\\ b_4\\ b_5\\ b_6\\ b_7 \end{bmatrix} + \begin{bmatrix} 1 \\ 1\\ 0\\ 0\\ 0\\ 1\\ 1\\ 0 \end{bmatrix}

In practice, it's easier to implement the S-box as a constant lookup table. I give some complementary information in my post about the AES algorithm.


Rcon is a round constant word array. For each round, you get 4-byte word. For your convenience here are the values of rcon[i]rcon[i] noted as rcirc_i, in hexadecimal:


The computation of rcirc_i involves a lot of algebra. Basically rci=xi1rc_{i} = x^{i-1}. Where xx is 02 in hexadecimal, and the multiplication is done is the finite field GF(28)GF(2^8).


This is it, you now know enough to implement the AES key schedule on your own (with the official specification as a reference of course). One last thing, you might not have noticed that an attacker who managed to retrieve a round key KiK_i, is able to determine all the other round keys as well as the cipher key KK by reversing the algorithm. An attacker could retrieve a round key thanks to a side channel attack.
